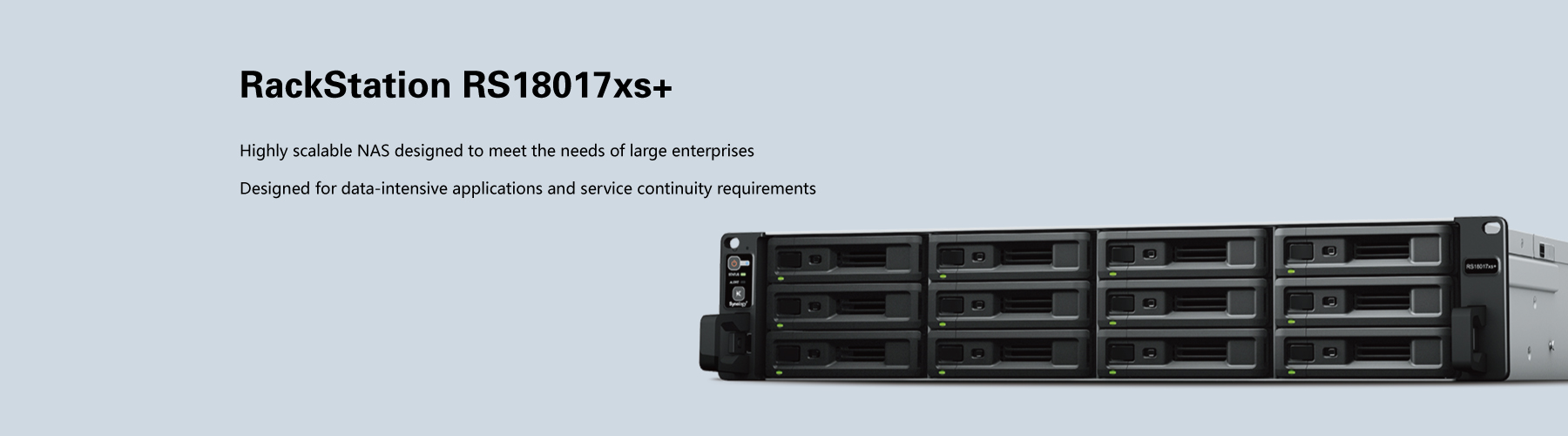

Application Field
Highly scalable NAS designed to meet the needs of large enterprises for virtualization, data intensive applications and service continuity
Product Features
Powerful storage solution
Designed for flexible management of storage space, the RS18017xs+ delivers high performance and provides over 208,692 random read IOPS and per second.
5,534 MB of continuous read flux 1. DDR4 ECC RDIMM and 10GbE connectivity ensure data accuracy and performance in mission-critical environments.
CPU: Intel? Xeon? D-1531 6-core processor
RAM option: 16 GB DDR4 ECC RDIMM up to 128 GB
Network: 2 10GBase-T ports, optional 10GbE NIC support
Chassis: 2U chassis design, 12 SAS/SATA hard drive slots
Efficient scalability and reliability
RS18017xs+ will be freely combined with Synology expansion devices RX1217sas and RX2417sas2
Flexible storage capacity expansion. Up to 7 expansion devices can be connected, allowing companies to easily expand from a young age.
5 year warranty
We are committed to improving product innovation and quality, and Synology guarantees robust data with a five-year limited warranty.
Manage the experience to deliver responsive technical support and hardware replacement services to maximize your return on investment.
Certified storage virtualization solution
Synology iSCSI storage fully supports most virtual solutions, and an easy management interface increases productivity.
The integration of VMware vSphere 6 with VAAI helps offload storage operations and optimize computing efficiency.
Windows Offloaded Data Transfer (ODX) can greatly increase data transfer and migration rates.
Synology NAS supports OpenStack Cinder and can be used as a block class storage component.
Btrfs: Next generation storage efficiency
The Btrfs file system uses more advanced storage technologies to meet the management needs of large modern enterprises:
Flexible shared folder/user quota system, providing full quota control for all user accounts and shared folders
Snapshot Replication provides scalable, storage-capable data protection with 1,024 shared folder backups and 65,000 system snapshots.
Ability to recover data quickly and flexibly with file or folder level data recovery
Automatic file self-healing capability detects and recovers damaged files without user intervention
Operating System
Synology MailPlus
Create a secure, reliable private mail server with a intuitive, intuitive user interface.More
Synology High Availability
When a server fails, it seamlessly transitions between clustered servers to minimize the impact on the application.More
Hyper Backup
Block-level incremental backups, as well as inter-version deduplication, let you store multiple backup versions.More
Management System
Improve management efficiency and resiliency by managing multiple Synology NASs simultaneously through a centralized interface.More
Cloud Station
Automatically synchronize cross-platform data and import file versioning.More
Collaboration Suite
Diverse multimedia management, streaming and playback solutions.More
Technical Specifications
處理器頻率：六核心 2.2 （基準） / 2.7 （睿頻） GHz
請選擇 Synology 內存模塊以獲得更好的兼容性和可靠性。如在內存擴充時使用了非 Synology 內存模塊，Synology 將不會提供全面的產品保證或技術支持。
內存 可擴充至：128 GB (32 GB x 4)
外接磁盤：Btrfs/EXT4/EXT3/FAT/NTFS/HFS+/exFAT*
2250 FPS @ 1080p (1920x1080)
1350 FPS @ 3M (2048x1536)
800 FPS @ 5M (2591x1944)
800 FPS @ 4K (3840x2160)
525 FPS @ 1080p (1920x1080)
350 FPS @ 3M (2048x1536)
220 FPS @ 5M (2591x1944)
RJ-45 10GbE 網絡孔：2
USB 3.0 端口：2
擴充端口：1
重量：14.5 公斤
機架安裝支持：四柱式 19 英寸機架
VCCI
CCC
RCM
KC
FCC
CE
BSMI
存儲溫度：-20°C 至 60°C (-5°F 至 140°F)
相對濕度：5% 至 95% RH
配件包 X 1
電源線 X 2
快速安裝指南 X 1
RAMRG2133DDR4-32G DDR4 ECC RDIMM
RAMRG2133DDR4-16G DDR4 ECC RDIMM
擴充設備: RX2417sas X 7
擴充設備: RX1217sas X 7
Synology 以太網適配器 E10G17-F2
Synology 以太網適配器 E10G18-T1
Synology 以太網適配器 E10G18-T2
Synology M2D18 M.2 SSD 適配器卡
Synology 滑動式機架套件 - RKS1317
VS360HD
VS960HD
